In the intricate world of closed-loop hydronic heating and cooling systems, air is the silent saboteur. Whether dissolved in the system’s water or present as free air bubbles, its presence can lead to a litany of problems: corrosion, noise, reduced efficiency, and even premature equipment failure. This is where the vacuum degasser steps in, acting as a sophisticated guardian against these airborne threats, ensuring system longevity and optimal performance.
The Problem with Air in Hydronic Systems
Even seemingly clean water contains dissolved gases, primarily oxygen and nitrogen. When this water is heated or circulated, these gases come out of solution, forming troublesome microbubbles and larger air pockets. This free air causes several issues:
- Corrosion: Oxygen is highly corrosive. Its presence in contact with metal components (pipes, boilers, radiators) leads to accelerated rust and degradation, forming sludge that can block pipes and damage pumps.
- Noise: Air pockets in pipes and radiators can cause irritating gurgling, banging, and whistling noises.
- Reduced Heat Transfer Efficiency: Air bubbles clinging to heat exchange surfaces act as insulators, significantly reducing the efficiency of boilers, chillers, and heat emitters. This means higher energy consumption to achieve desired temperatures.
- Cavitation in Pumps: Air passing through circulating pumps can cause cavitation, leading to noisy operation, vibration, and damage to the pump’s impeller.
- Flow Imbalances & Cold Spots: Air pockets can create blockages, preventing proper water circulation to parts of the system, resulting in cold spots in radiators or inefficient cooling.
- Frequent Venting: Without effective degassing, manual or automatic air vents are constantly overworked, leading to maintenance issues and potential leaks.
How a Vacuum Degasser Works

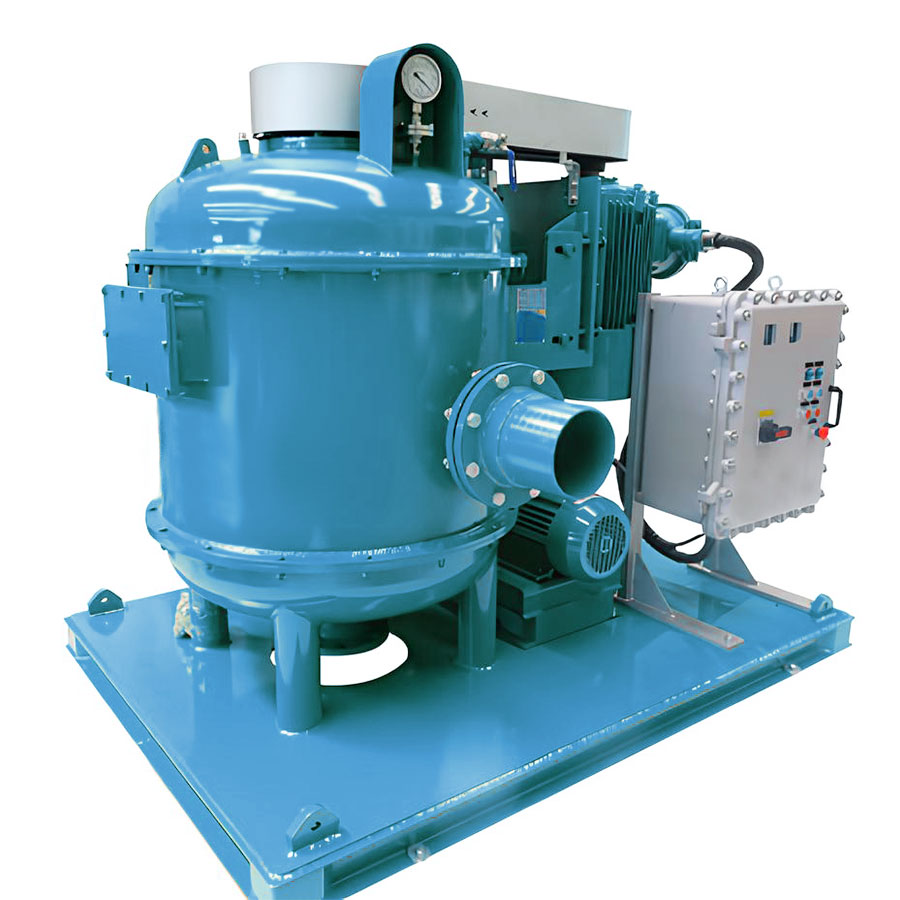

A vacuum degasser is a highly effective piece of equipment designed to continuously remove both dissolved and free air from a hydronic system. It operates on a simple, yet ingenious principle: Henry’s Law, which states that the solubility of a gas in a liquid is directly proportional to the partial pressure of that gas above the liquid.
Here’s a simplified breakdown of its operation:
- Water Extraction: A small portion of the system water is continuously drawn from the main circulation loop into the degasser’s vessel.
- Pressure Reduction: Inside the degasser, a vacuum pump creates a powerful negative pressure (partial vacuum). This significantly lowers the pressure above the water.
- Gas Release: Under this reduced pressure, the dissolved gases (oxygen, nitrogen) come out of solution rapidly, forming tiny bubbles. Any existing free air bubbles also expand due to the lower pressure.
- Air Expulsion: These released gases are then automatically expelled from the degasser’s vessel via an air vent valve.
- Treated Water Return: The now de-aerated water is returned to the main system, creating a continuous cycle of air removal.
Because the process continuously removes dissolved gases, it prevents them from forming troublesome free air bubbles in the first place, offering a far more comprehensive solution than simple air vents.
Benefits of Installing a Vacuum Degasser
The investment in a vacuum degasser yields significant returns in terms of system performance and longevity:
- Corrosion Control: By effectively removing oxygen, vacuum degassers dramatically reduce the risk of corrosion, prolonging the lifespan of all metal components in the system. This often translates to fewer breakdowns and lower replacement costs.
- Improved Energy Efficiency: De-aerated water has a higher thermal conductivity, meaning heat transfer is optimised. This can lead to substantial energy savings as boilers and chillers operate more efficiently.
- Enhanced System Performance: Eliminating air ensures uniform flow and consistent heating or cooling throughout the building, removing cold spots and ensuring comfortable conditions.
- Quieter Operation: No more annoying gurgling, banging, or whistling sounds caused by air pockets.
- Reduced Maintenance: Fewer issues related to corrosion, pump cavitation, and manual venting mean less frequent maintenance and repair calls.
- Extended Equipment Lifespan: Protecting pumps, boilers, and other vital components from air-related damage extends their operational life, delaying costly replacements.
In essence, a vacuum degasser is not just an add-on; it’s a fundamental component for any professional, efficiently run hydronic system, ensuring quiet operation, maximum energy efficiency, and a significantly longer lifespan for expensive plant equipment.
